Description

Baja Designs LP4 LED Lights – Pair

Baja Designs LP4 LED Lights , Introducing Baja Designs’ LP4, the most compact model in the LP series, yet fully equipped with the power and features of its larger counterparts. The LP4 boasts an impressive 8,750 lumens, offering a broad 200° spread of effective LED illumination. This formidable light delivers 7,050 lumens of forward projection and 1,700 lumens of peripheral illumination, thanks to our unique Integrated Peripheral Technology (IPT).

Enhanced with our innovative Direct Ducted Cooling (DDC) system, the LP4 ensures peak performance by directing air through the front and over the rear heat sinks, significantly enhancing cooling and efficiency. Equipped with an amber day-time running light, the LP4 is versatile enough to meet all your lighting requirements.

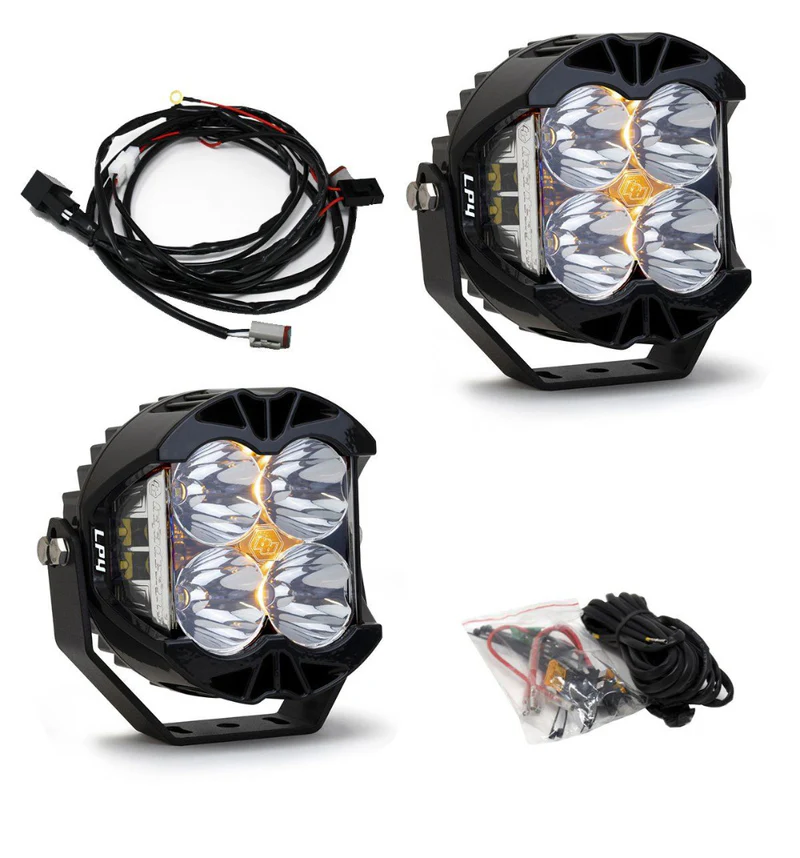

INCLUDED IN YOUR PACKAGE:

• Two LP4 LED Lights
• One Wiring Harness

SPECIFICATIONS:

• Forward Projecting Lumens: 7,050 (using 4 LEDs)
• Forward Projecting Power: 60W / 6.5A
• IPT Lumens: 1,700 (using 4 LEDs)
• IPT Power: 15W / 1.0A
• Backlight Power: 4.83W / 0.35A
• Size: 5.1″ H x 5.1″ W x 3.2″ D
• LED Longevity: Approximately 49,930 Hours
• Front Lens: Hardcoated Polycarbonate
• Enclosure: Hard Anodized Machined Aluminum
• Bezel: Billet Machined Aluminum
• Hardware & Bracket: Stainless Steel
• Surpasses MIL-STD810G Military Standards
• Overvoltage Protection: Built-In
• Waterproof Rating: IP69K (Submersible up to 9ft)
• Impact Resistance: IK10 Compliant

BEAM OPTIONS:

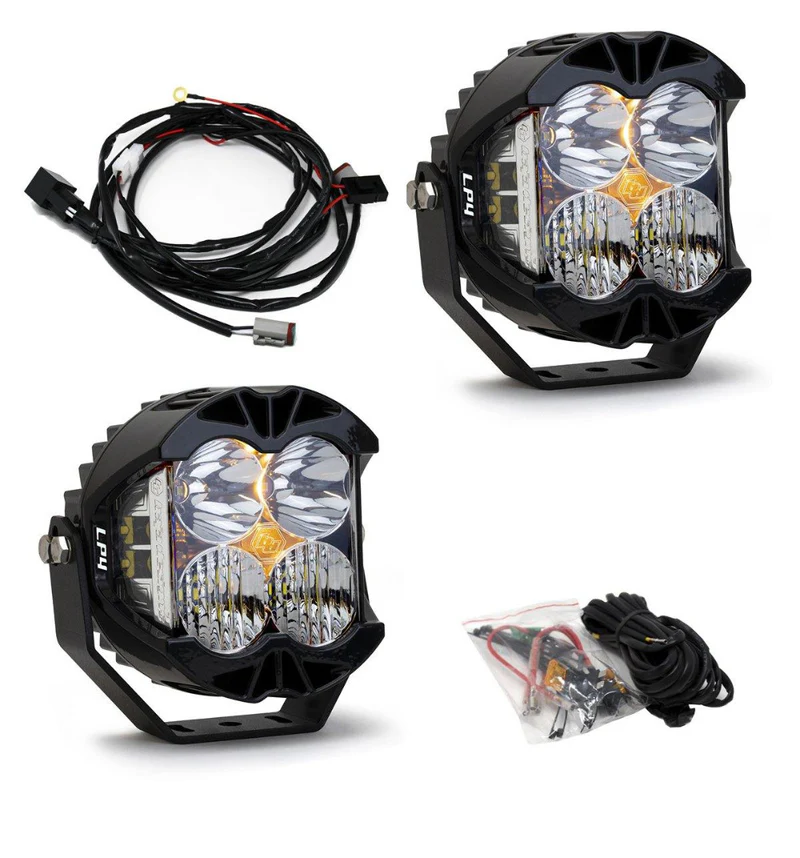

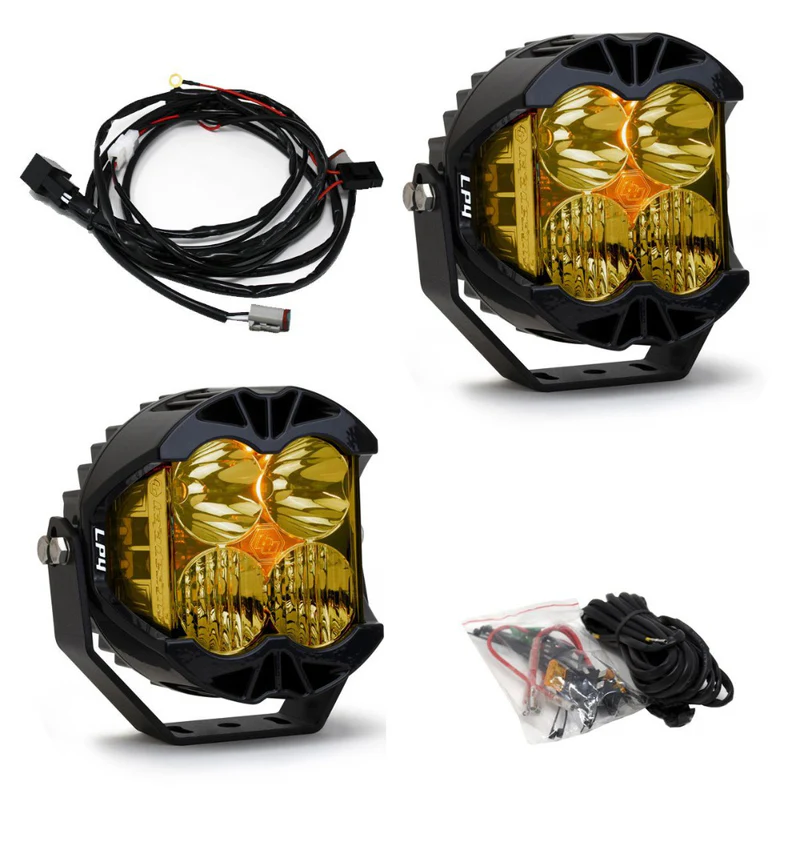

• Driving/Combo: Offers comprehensive trail coverage in one light. Combines Wide Driving (42°) and Spot (6°) optics for a versatile light blend for near and distance needs.
• High-Speed Spot: Features a focused 6° beam for long-range illumination. Ideal in conjunction with additional Wide Driving or Driving/Combo beam lights.

The LP4 is the smallest variant in the LP line up but maintains all of the power and features of its siblings.

Baja Designs LP4 LED Lights

The LP4  features a total of 8,750 lumens and a 200° spread of useable LED light. This light pumps out 7,050 forward projecting lumens and 1,700 lumens of dedicated peripheral lighting courtesy of our patented Integrated Peripheral Technology (IPT).

To keep your light performing at its highest potential, the LP4 integrates our proprietary Direct Ducted Cooling (DDC) technology. This feature allows air to travel through the front of the housing, over the rear heat sinks – drastically improving cooling capacity and performance.

With an amber day-time running light, the LP4 will fulfill all your lighting needs.
